Dali 2 標準型(非隔離)LED驅動器(鐵殼)

產品型號:HYL-***DA****N***ED

產品品牌:SINOBASE

最小起訂量:1000

原產地:中國

Email 點擊詢價

Features:

· The casing is made of hot-dip galvanized steel plate, with a surface coating structure, which has good properities of acid and alkali resistance, impact resistance and electrical properties of high voltage resistance.

· Support DALI-2 / Push DIM dimmble.

· Support corridor FUNCTION and DC power supply, suitable for central emergency lighting system.

· The external dial code realizes 16-step current output, which is more convenient to adjust the lamp power.

· Under any dimming level, the brightness of each lamp is synchronized and consistent.

· Soft dimming and no flcker at any brightness, in line with Erp energy efficiency certification standards for ficker-free.

· The dimming range is 1-100%, and the output current accuracy is 5%.

· Standby power consumption is <0.5W, which meets the standby power requirements of Erp energy efficiency certification.

· Excellent Push DIM dimming algorithm, good synchronization effect, support small gap switch action.

· Lighting surge L-N 2KV, L/N-PE 3KV.

· Cost-effective non-isolated design.

· Support open circuit protection, short circuit protecton, overload protection, over voltage protection, over temperature protection.

· The average lifespan is 50,000 hours
· The warrantyshall be specfied by datasheets.

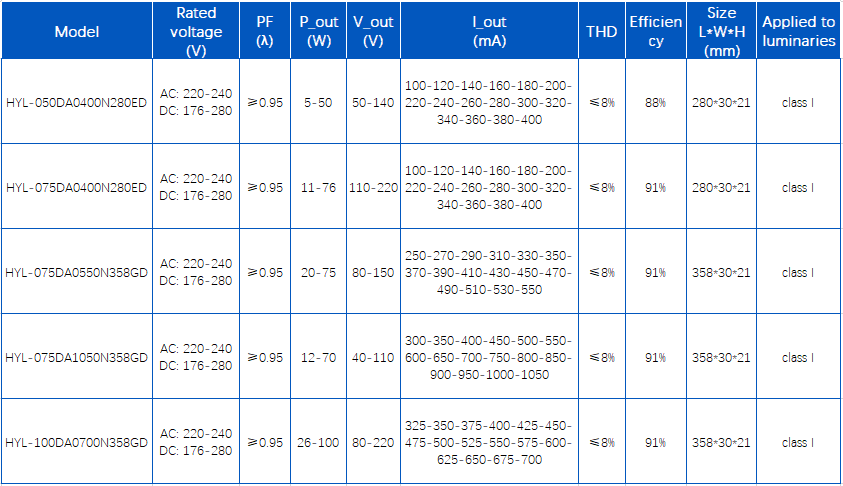

Specification



Certification:




Application:

Design for office lighting, commerical lighting, hospital lighting, public lighting, home lighting, etc.

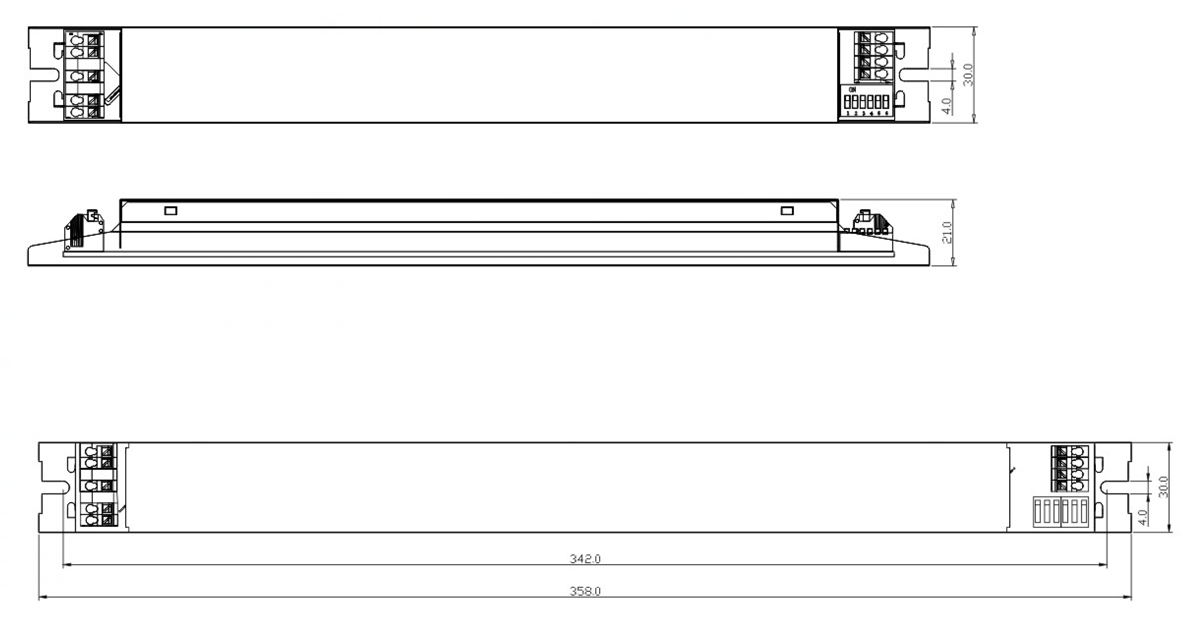

Mechanical specification:(unit:mm)1678777003982614kTJU.png

Please contact us for more details: [email protected]
