產品型號:HYL-***DA****G***ED/GD
產品品牌:SINOBASE
最小起訂量:1000
原產地:中國
Email 點擊詢價Features:
Features:
· The casing is made of hot-dip galvanized steel plate, with a surface coating structure, which has good properities of acid and alkali resistance, impact resistance and electrical properties of high voltage resistance.
· Support DALI-2 / Push DIM dimmble.
· Support corridor FUNCTION and DC power supply, suitable for central emergency lighting system.
· The external dial code realizes 15-step current output, which is more convenient to adust the lamp power.
· Under any dimming level, the brightness of each lamp is synchronized and consistent.
· Soft dimming and no flcker at any brightness, in line with Erp energy efficiency certification standards for ficker-free.
· The dimming range is 1-100%, and the output current accuracy is 5%.
· Standby power consumption is <0.5W, which meets the standby power requirements of Erp energy efficiency certification.
· Excellent Push DIM dimming algorithm, good synchronization effect, support small gap switch action.
· Lighting surge L-N 2KV, L/N-PE 3KV.
· Optional intelligent LED hot-swap protection.
· Support open circuit protection, short circuit protecton, overload protection, over voltage protection, over temperature protection.
· The average lifespan is 50,000 hours
· The warrantyshall be specfied by datasheets.

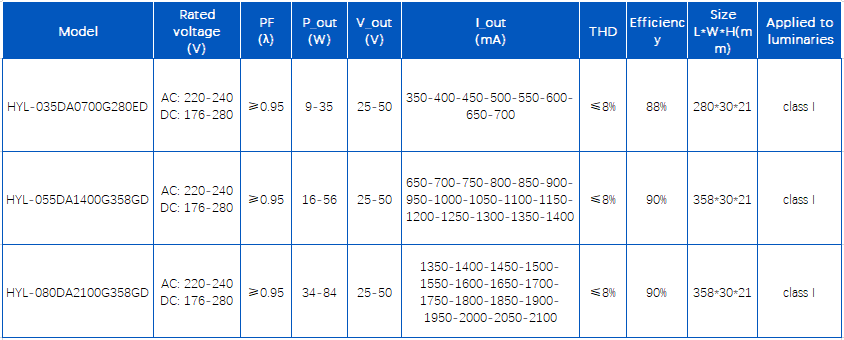

Specification:
Certification:
Application:
Design for office lighting, commerical lighting, hospital lighting, public lighting, home lighting, etc.

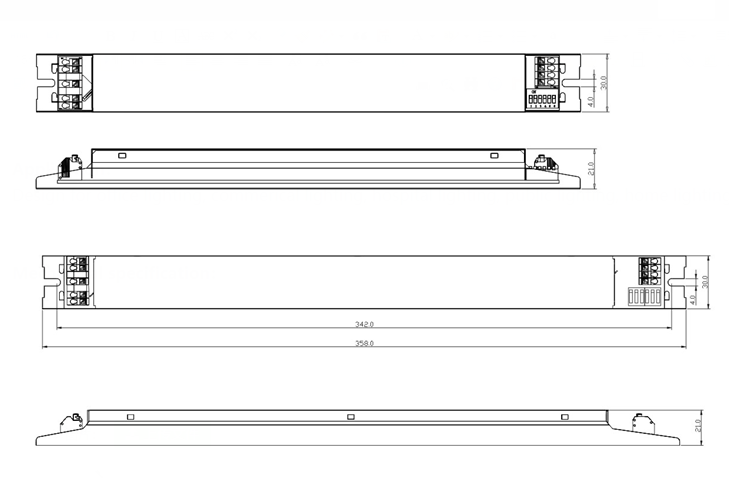

Mechanical specification:
