Description:
Specification:
| Models | HK-25 Vario | HK-25L Vario |
| Dirlling capacity | 25mm | |
| Face milling capacity | 63mm | |
| End milling capacity | 20mm | |
| Spindle taper | MT3 | |
| Travel of spindle | 50mm | |
| Spindle speed | 50-2250rpm | |
| Head speed | ±45° | |
| Work tabel size | 500*180mm | 700*180mm |
| X-axis travel | 280mm | 480mm |
| Y-axis travel | 175mm | |
| Z-axis travel | 270mm | |
| T-slot | 12mm | |
| Motor power | 750W | |
| Packing list (L*W*H) | 670*550*860mm | 870mm*550*860mm |
| N.W. | 113kg/138kg | 125kg/150kg |
Standard accessories：
Speed screen display
Depth ruler
Dill chuck 3-16mm
Arbor
Drawbar
Operationg tools
Optional accessories：
Stand & chip tray
Keyless drill chuck 3-16mm
ER25/6pcs collet chuck (4-16mm)
End mill 7pcs (4-16mm)
58pcs of clamping kits

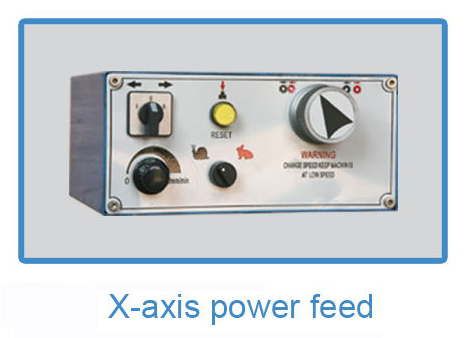

X-axis power feed

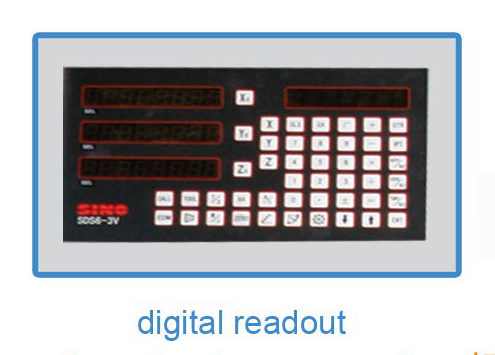

digital readout
