Description:
Specification:
| Models | HK-16V Vario | HK-16VA Vario | HK-16VAL Vario |
| Drilling capacity | 16mm | ||
| Face milling capacity | 50mm | ||
| End milling capacity | 16mm | ||
| Spindle taper | MT2 | ||
| Travel of spindle | 50mm | ||
| Speed of spindle | 50-2250rpm | ||
| Head rotation | ±45° | ||
| Work table size | 400*120mm | 500*145mm | |
| X-axis travel | 220mm | 300mm | |
| Y-axis travel | 160mm | ||
| Z-axis travel | 210mm | |
| T-slot | 10mm | |
| Motor power | 600W | |
| Packing size (L*W*H) | 500*450*760mm | 670*550*760mm |
| N.W./G.W. | 70kg/90kg | 78kg/100kg |
Standard:
HK-16V Vario
Depth ruler
Arbor MT2/B16, M10
Drawbar MT2/M10
Operating tools
HK-16VA / VAL Vario
Speed screen display
Depth ruler
Arbor MT2/B16, M10
Drawbar MT2/M10
Operating tools
Spindle mirco feed device
Optional accessories:
Stand & chip tray
Keyless drill chuck 3-16mm
ER25/6pcs collet chuck (4-16mm)
End mill 7pcs, 4-16mm
58pcs of clamping kits/M10*11.7mm
Drill chuk, 3-16mm

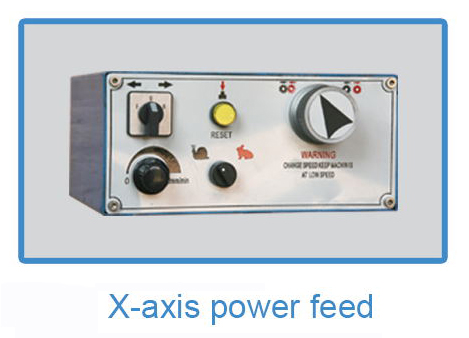

X-axis power feed

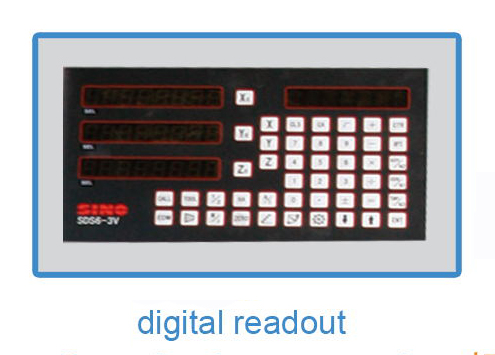

digital readout
