Small size water-proof LED driver (SinoBase) 8-15W, 100-240Vac
for garden, wall, underground lighting and other available light
Features:
· Design in small size to fit your lamp；
· Easy for installation with cables at both ends；
· Constant current mode；
· Output SELV protection, short circiut, over current and over voltage protection；
· Extremely high precision output current；
· A wide range of input voltage 100-240Vac;
Specification：
| Power | Model | U_in(Vac) | U_out(Vdc) | Rated I_out (A) | Ta(℃) | Tc (℃) | Max power (W) | Size (L*W*H, mm) |
8-15W | SILA60025BG1 | 100-240V～50/60Hz | 32-60 | 0.25 | -20-50 | 80 | 15 | 69*35*23.5 |
8-15W | SILA50030BG1 | 100-240V～50/60Hz | 26-50 | 0.3 | -20-50 | 80 | 15 | 69*35*23.5 |
8-15W | SILA43035BG1 | 100-240V～50/60Hz | 22-43 | 0.35 | -20-50 | 80 | 15.05 | 69*35*23.5 |
8-15W | SILA38040BG1 | 100-240V～50/60Hz | 20-38 | 0.4 | -20-50 | 80 | 15.2 | 69*35*23.5 |
8-15W | SILA33045BG1 | 100-240V～50/60Hz | 17-33 | 0.45 | -20-50 | 80 | 14.85 | 69*35*23.5 |
8-15W | SILA30050BG1 | 100-240V～50/60Hz | 16-30 | 0.5 | -20-50 | 80 | 15 | 69*35*23.5 |
8-15W | SILA27055BG1 | 100-240V～50/60Hz | 14-27 | 0.55 | -20-50 | 80 | 14.85 | 69*35*23.5 |
8-15W | SILA25060BG1 | 100-240V～50/60Hz | 13-25 | 0.6 | -20-50 | 80 | 15 | 69*35*23.5 |
8-15W | SILA23065BG1 | 100-240V～50/60Hz | 12-23 | 0.65 | -20-50 | 80 | 14.95 | 69*35*23.5 |
8-15W | SILA22070BG1 | 100-240V～50/60Hz | 11-22 | 0.7 | -20-50 | 80 | 15.4 | 69*35*23.5 |
P.S.:
* The certified current step is 50mA, contact us for the specs outside of above tables.
* Optional for glue potting or not as per you demand.
Certification： TUV, CE, LVD, EMC, CB, SAA, ROHS, ERP
Application：

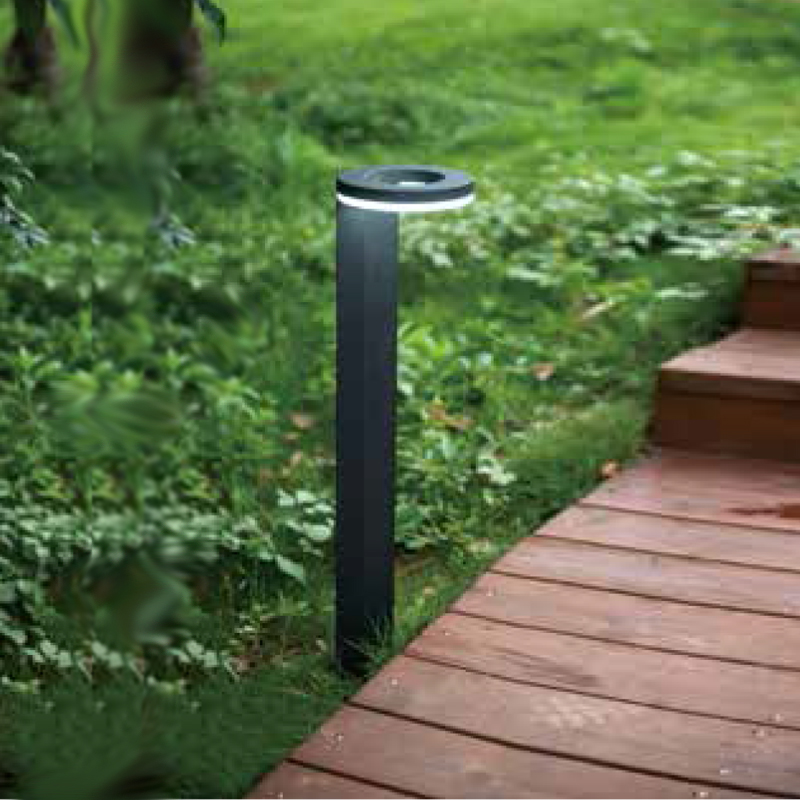

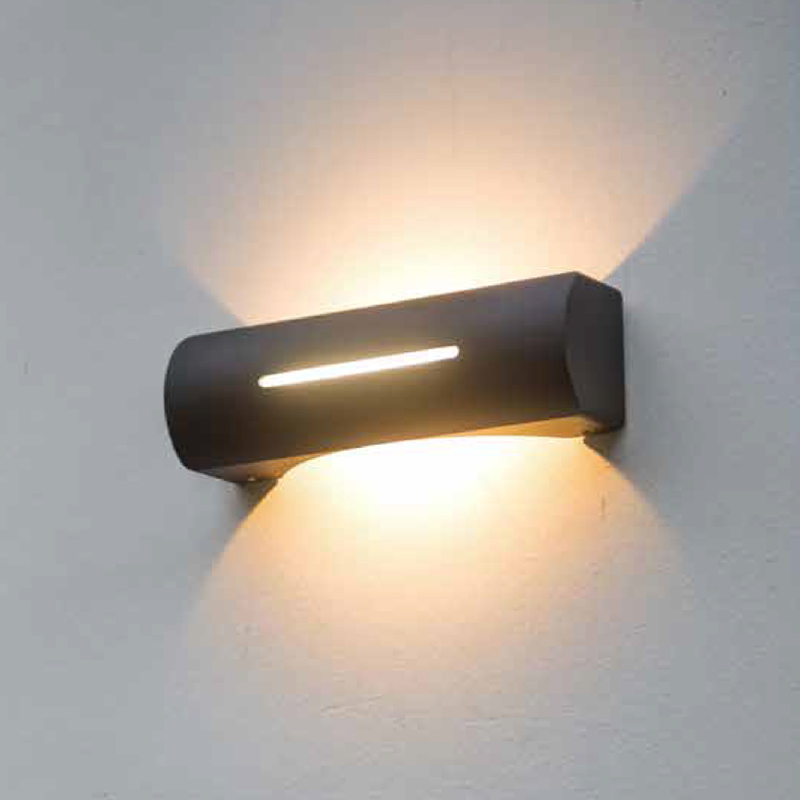

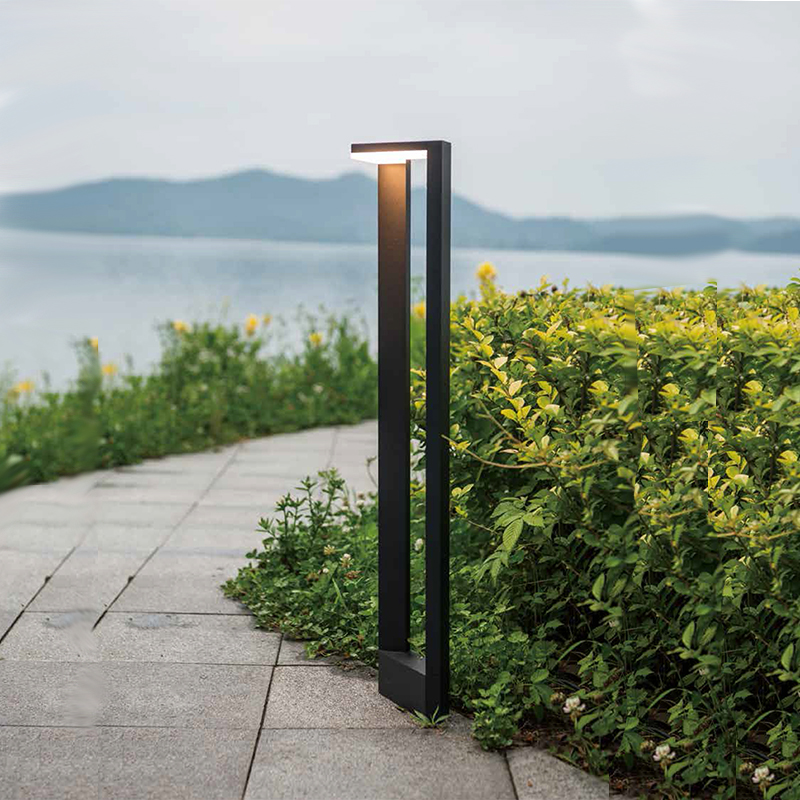

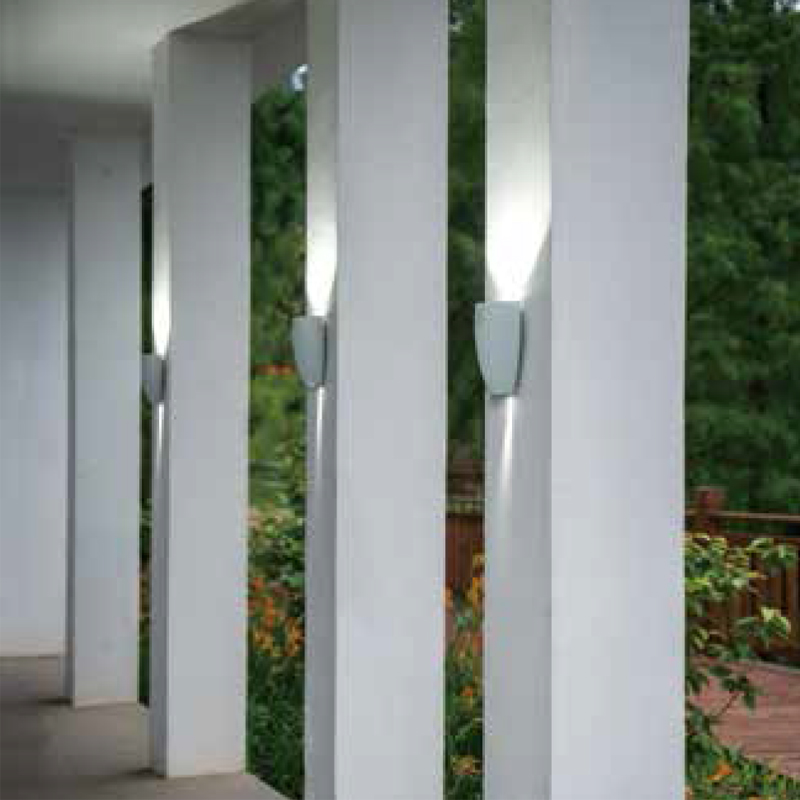

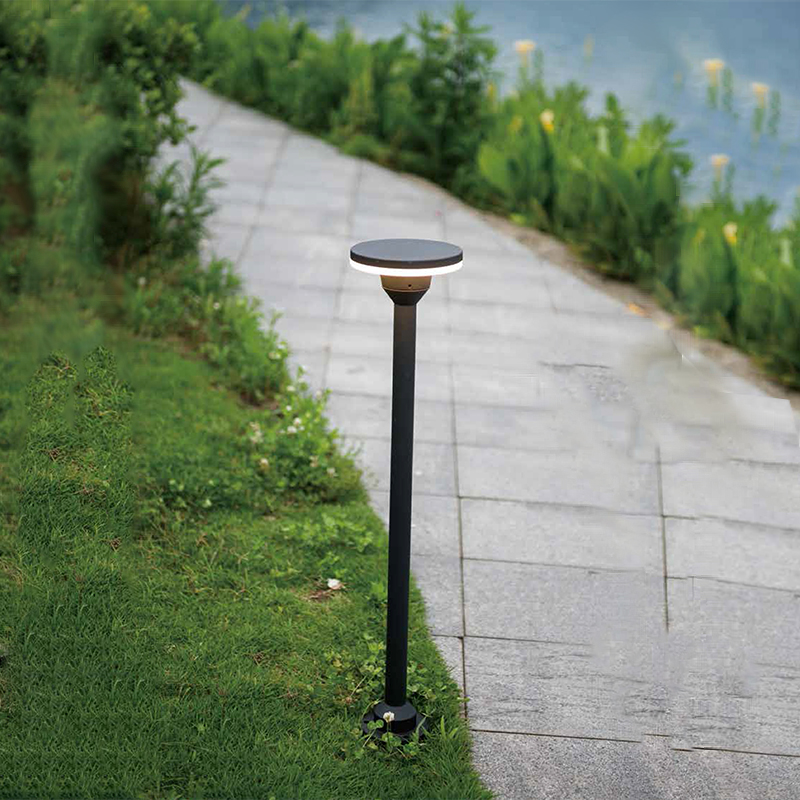

Design for small body lamp, such as wall lamp, garden lamp, undergound light and other available etc...

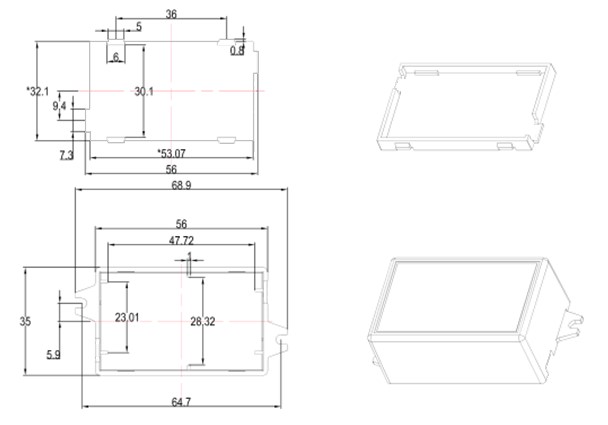

Mechanical specification：
water proof, small size, mini size LED Driver, SinoBase, for wall / garden lighting, SILA*****BG1, small
